Basic Info.
Model NO.
HPC-5335
Portable
Non Portable
Form
Machine
Application
Security Check, Industrial, Hotel; Airport
Type
Industrial High-definition X-ray Detector
Certification
CE, ISO, RoHS FCC
Alarm Form
Display Alarm
Model
Hpc-5335
Brand
Peacentury
Tunnel Size
530*350mm
Character
Multi Energy
Function
Checking Luggage
Max Loading
150kg
LCD Screen
20 Inch
System
Windows
Steel Penetration
36mm
Transport Package
Polywood Case
Specification
345KG/unit
Trademark
PEACENTURY
Origin
China (Mainland)
HS Code
9022191090
Production Capacity
500PCS/Month
Product Description

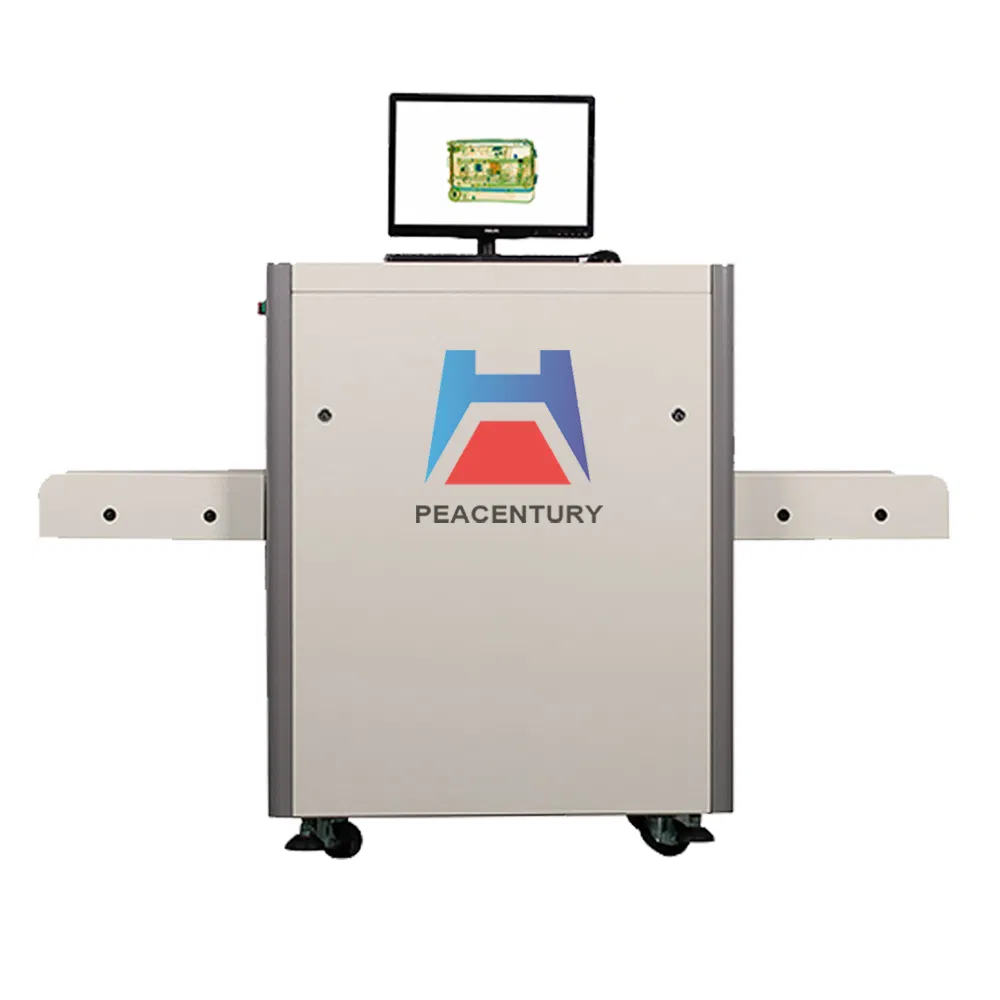

Multi Energy Medium Size X Ray Baggage Scanner With 530*350mm Tunnel Luggage Scanner
General Specifications
X-Ray Generator
Operating Environment
Image Performance System
Multi-energy: High/ low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
Assist to detect drug and explosive powder
General Specifications
| Tunnel Size : | 530 (W) ×350 (H) mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 100 kg |
| Single inspection dosage: | < 1.32μGy |
| Wire Resolution: | 40AWG (0.0787mm metal line) |
| Steel Penetration: | 36mm |
| Film Safety: | For ISO 1600 |
X-Ray Generator
| Orientation: | Upward |
| Tube Current: | 0.4~1.2mA(adjustable) |
| Anode Voltage: | 100~140KV(adjustable) |
| Angle: | 80° |
| Generator cooling/working periods: | Sealed oil bath with forced air/100% |
Operating Environment
| Noise | <65DB |
| Storage Temperature: | -20oC to 60oC |
| Operating Temperature: | 0oC to 45oC |
| Power wastage: | 1.0 KW (Max) |
| System Power: | 220 VAC (±10%) 50±3HZ |
| Relative Humidity: | 20 to 95% non-condensing |
| X-RAY Sensor: | L-shaped array detector, 24bit, Dual energy |
Image Performance System
| Display: | High-resolution 20 inch color LCD display |
| Color quality: | 12-Bit real colors based on materials |
| Edge enhancement: | Object contour edge is more distinct |
| Super image enhancement: | Image detail is more distinct |
| High penetration display: | Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly |
| Low penetration display: | Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly |
| Magnifier: | Partial magnifying function |
| Brightening/dimming: | Increase/Decrease brightness of image |
| Image recurrence: | Display the previous twenty images and process any one of them |
| Image restoration: | Restore image to initial status |
| Image storage: | Real-time store any image and process it in operation status |
Multi-energy: High/ low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
Assist to detect drug and explosive powder
