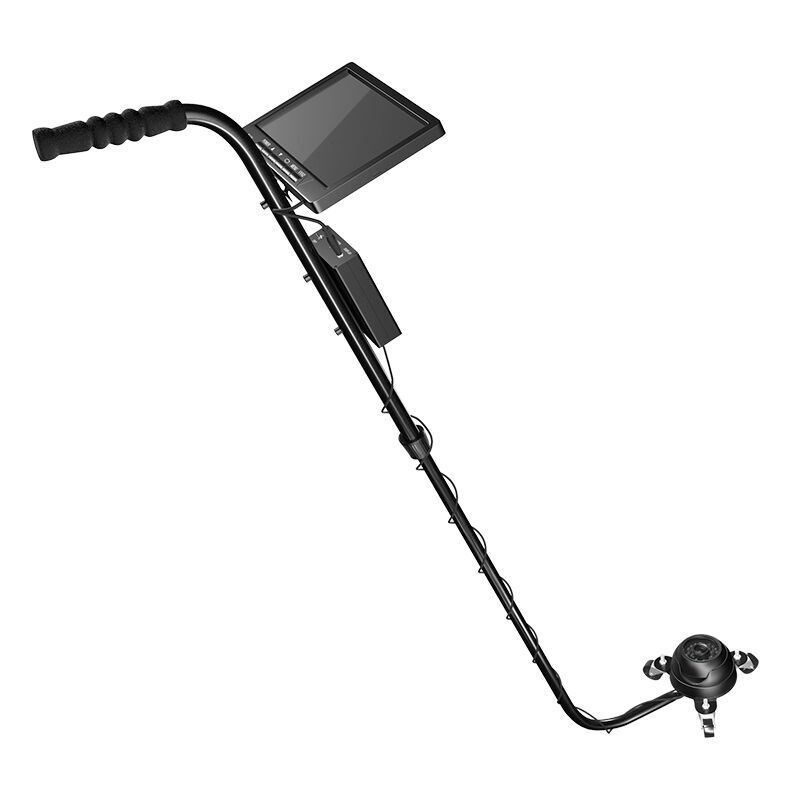

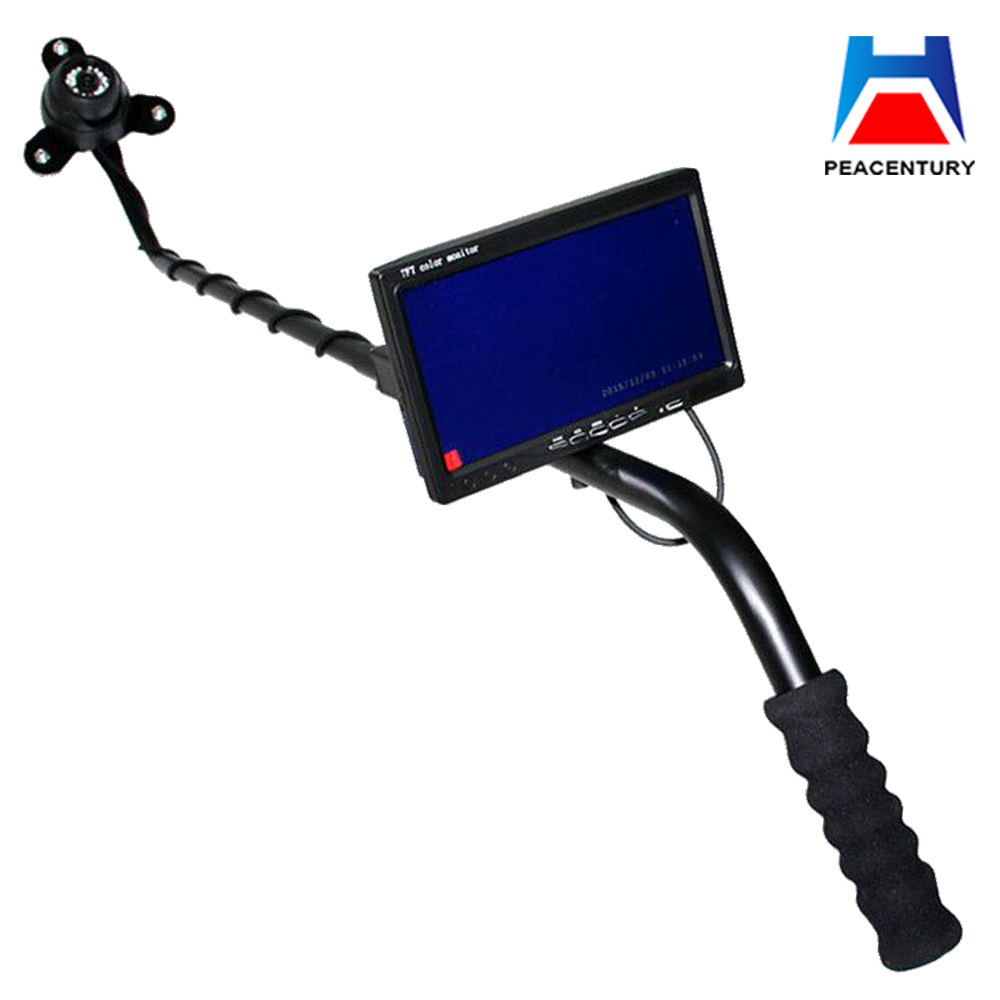

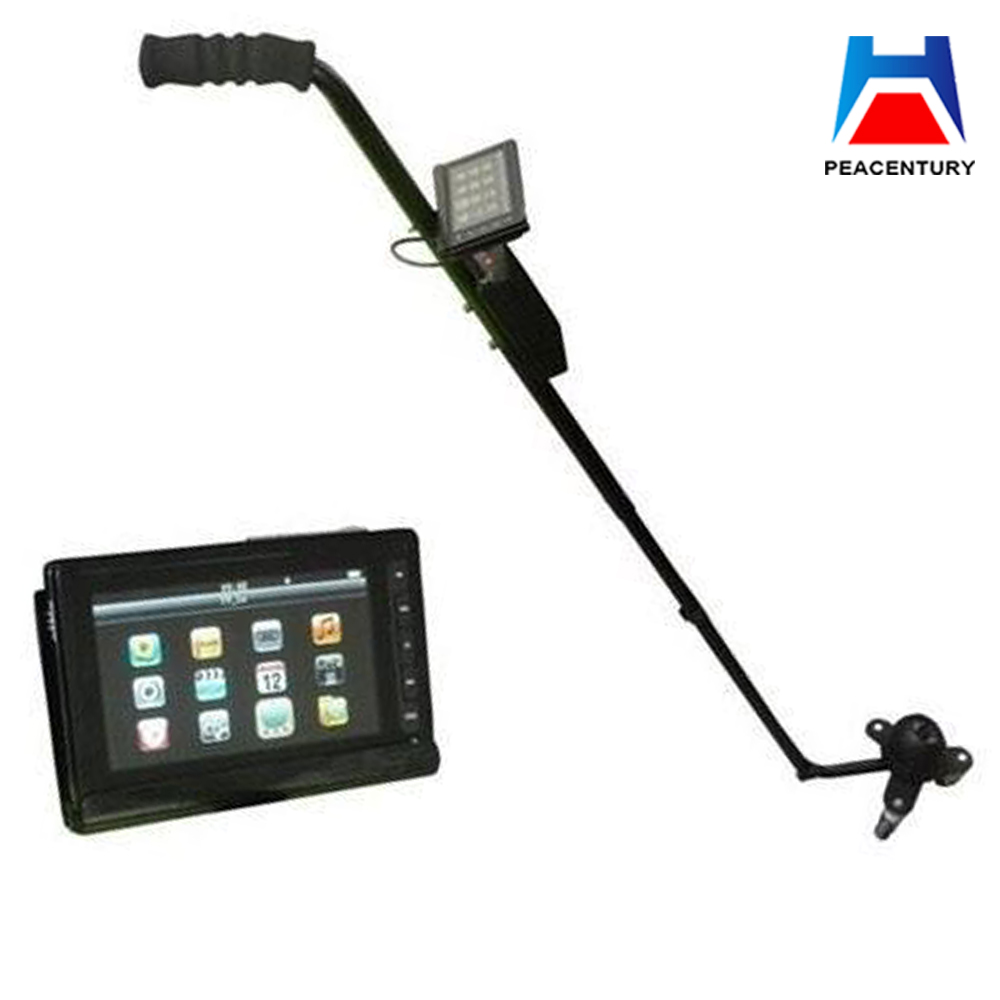

Under Vehicle Camera HPC-V3D

Product Features:

the visual vehicle inspection mirrors with the function of Video Recording, using multi-media player with a7-inch LCD screen and DVR, not only can process real-time checks, but also to screen checked record for future view.

Specifications:

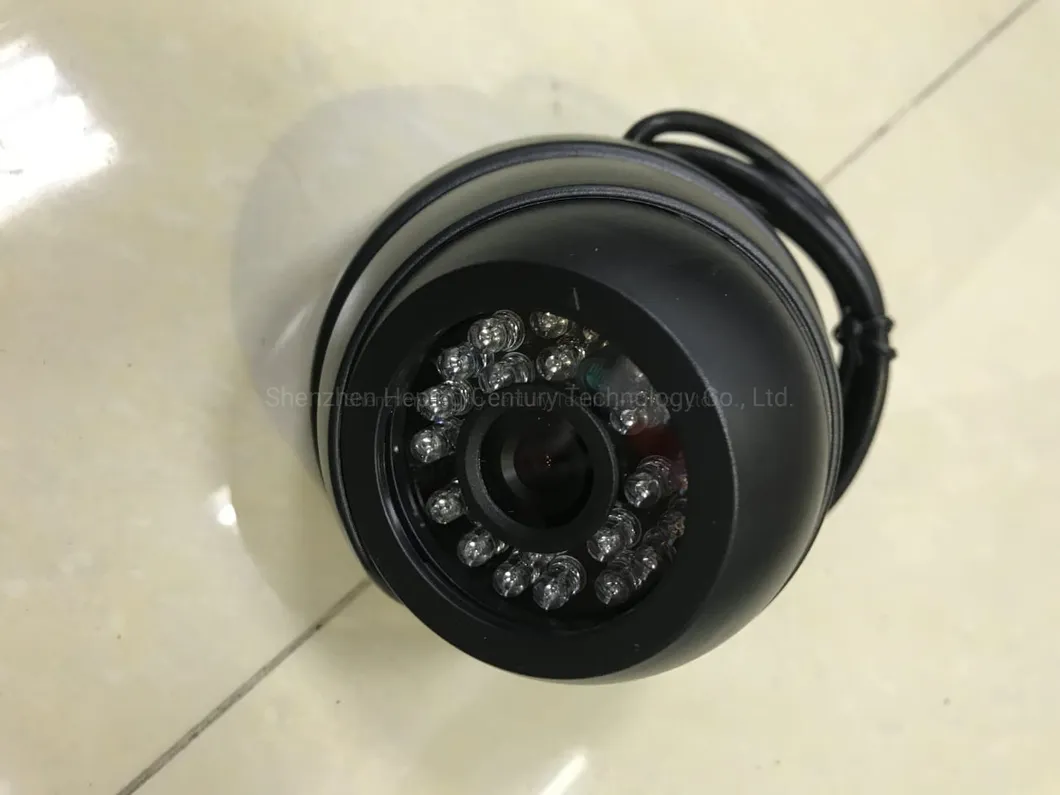

1,CAMERA

Resolution: 1 / 3 inch

chip: 420 line Sharp CCD

Power Supply: DC12V

automatic infrared night vision function

  IR Cameras using SONY, CCD sensor

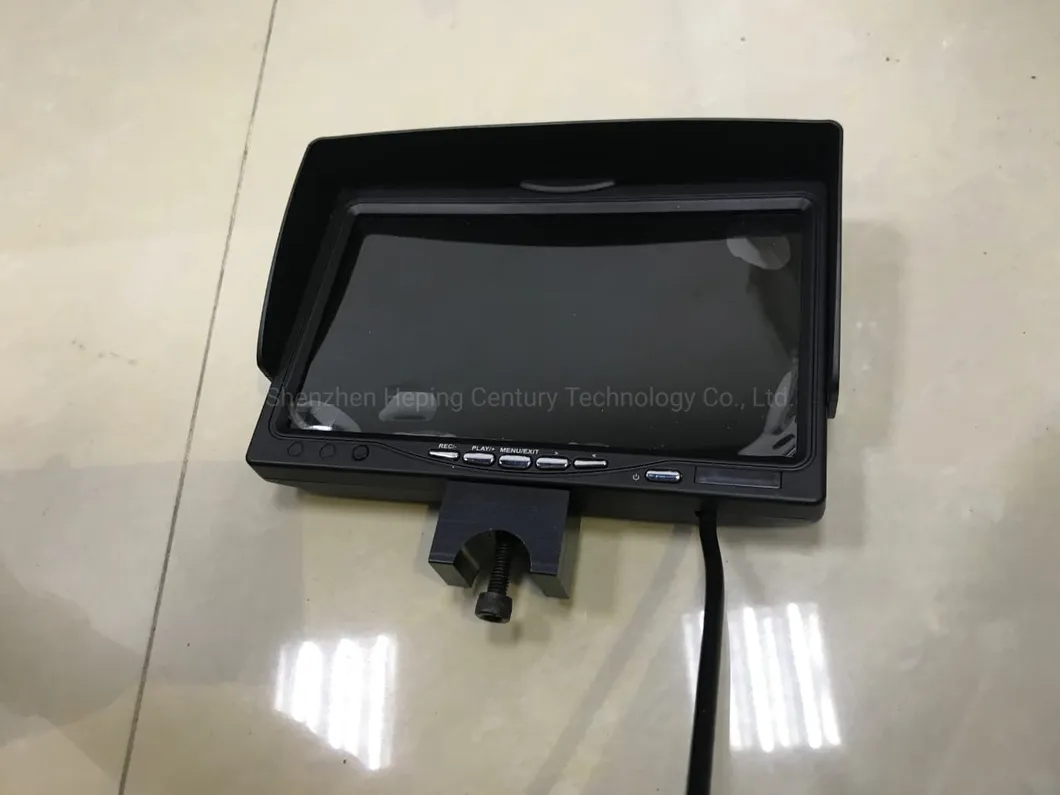

2,LCD/DVR

Screen size: 7 inches

Resolution: 480 * 320 * RGB

Power supply: Built-in 3.7V rechargeable battery

7 inch LCD Screen

3,BATTERY

1)   HOST BOX CHARGE

When the screen images distorted or no images and the indicator behind the host box is not extinguished, you should charge the host box. Using the 13.8V/1000mA charger to change the Host Box, at the process,at forst it is red,when full, it is green

2)   LCD/DVR CHARGE

When appears the low-voltage logo on the screen or automatic shutdown, you need to use the 5V/1A of small charger to charge the DVR.Charging time is normally 4-8 hours, preferably not more than 8 hours, or DVR's Built-in battery life will be affected. In the process of charging, DVR the will be a small indicator light is red on the lower right corner of DVR , green when it is full.

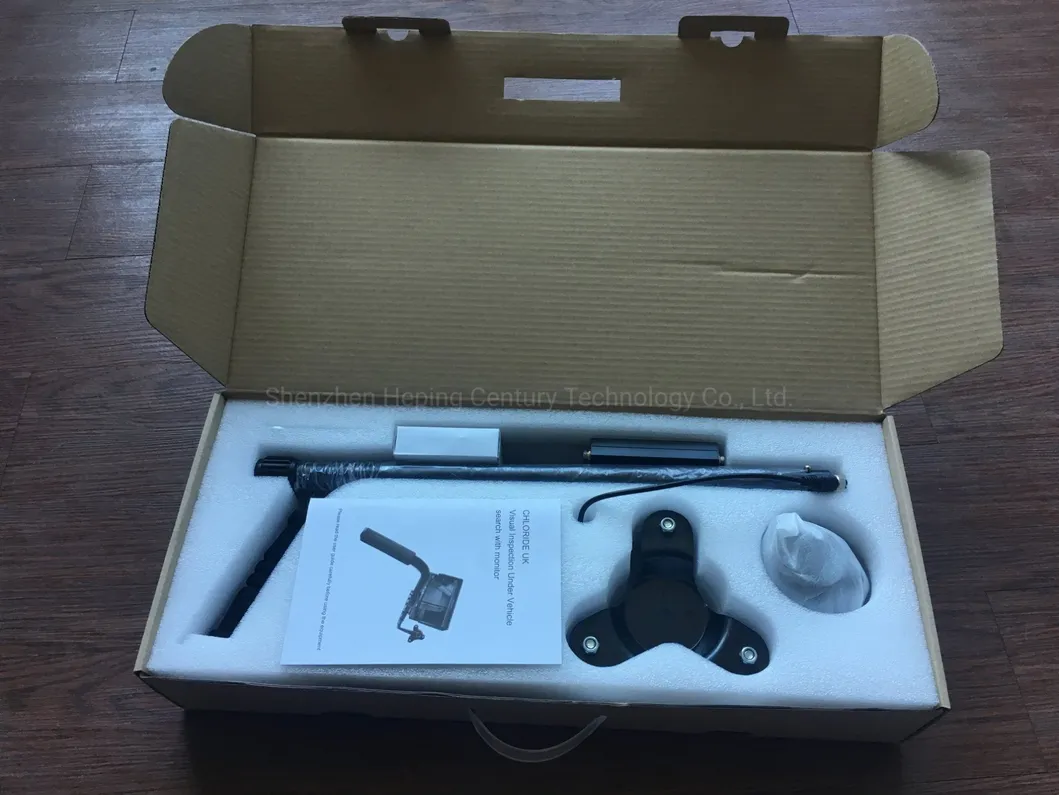

PACKAGE LIST

One Camera

One Host Box

One DVR /LCD

Two Charger (13.8V/1000mA,5V/1A )
